HP MFDs

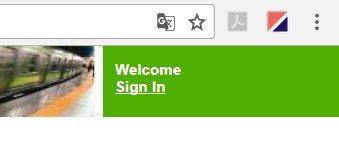

Open printers Webinterface in a browser and choose “Sign in” at the upper right corner.

Unknown Attachment

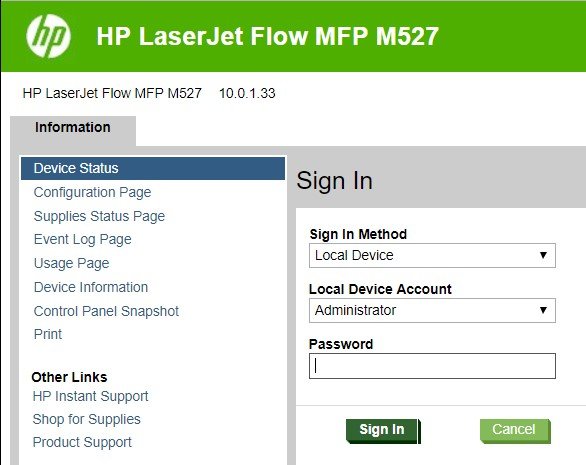

Write “admin” under “Password” and choose “Sign in”.

Unknown Attachment

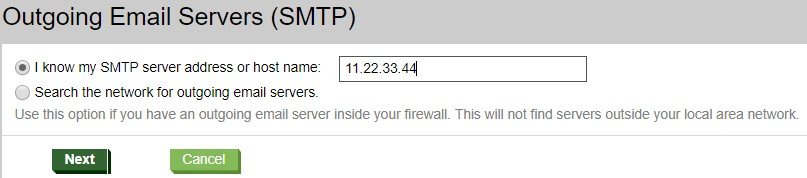

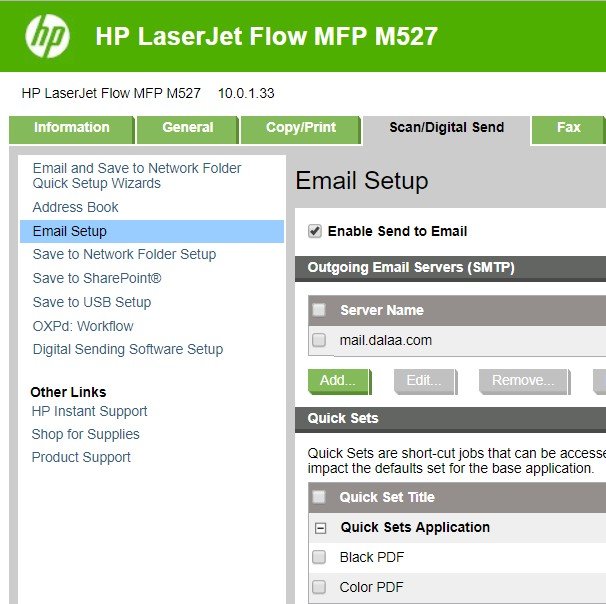

Under “Scan/Digital Send” choose “Email Setup” and choose “Add” under “outgoing Email Servers (SMTP).

Unknown Attachment

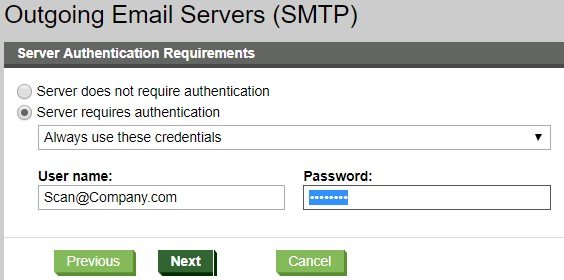

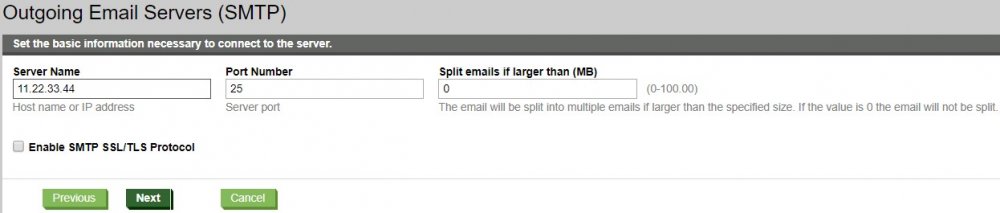

Follow the guide to set up Scan To Mail with proper information.

Unknown Attachment

Unknown Attachment

Unknown Attachment

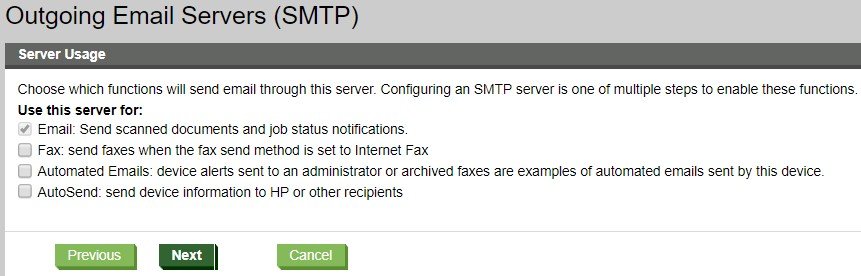

Be sure to remove the lower three markings.

Unknown Attachment

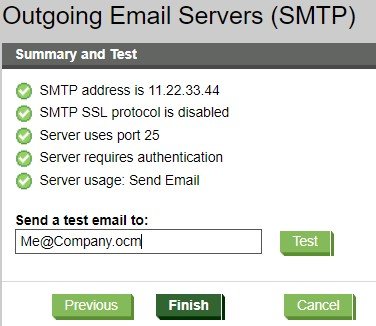

Here you can send a testmail.

Unknown Attachment

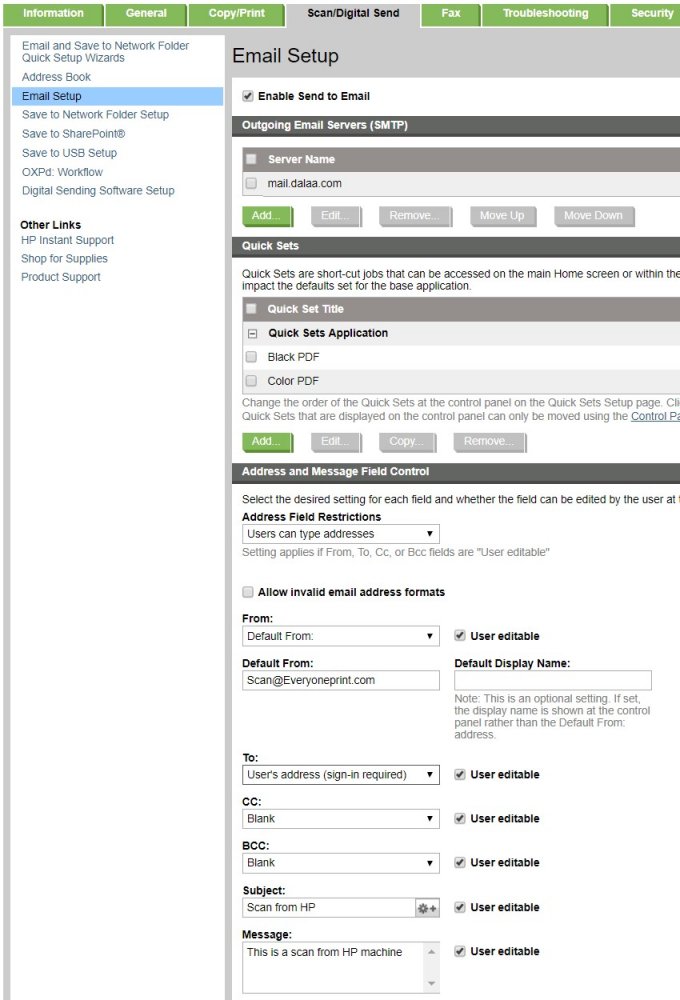

Under “Scan/Digital Send”, “Email Setup”, “Address and Message Field Control” you can choose wether the logged in user is set in as the default receiver of the scan, who should be in the “From”-field and which functions should be editable by logged in user.

Unknown Attachment

Card Self enrollment on the MFD:

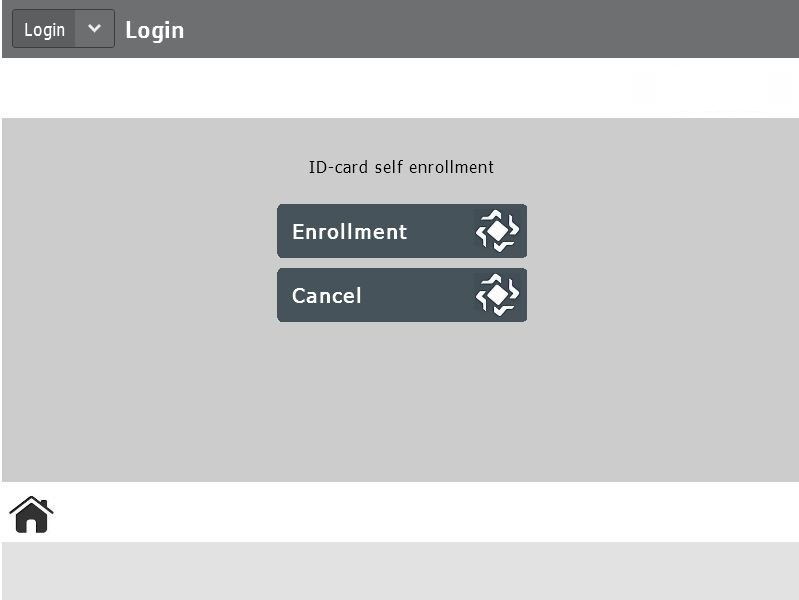

Swipe your card and follow the guide for Self Enrollment.

Unknown Attachment

Unknown Attachment

Unknown Attachment

Now your card are enrolled with your user and you can just swipe your card from now on.

Log in to the machine by card:

Just swipe the card and hit the function you want to use.

Unknown Attachment

Swipe your card again to log out.

Manual login on the mfp:

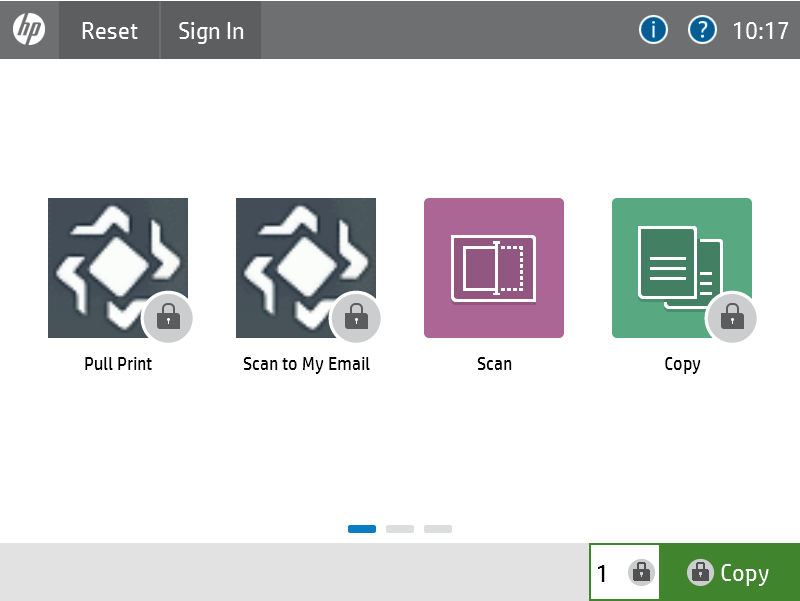

Hit the “Sign in”-icon

Unknown Attachment

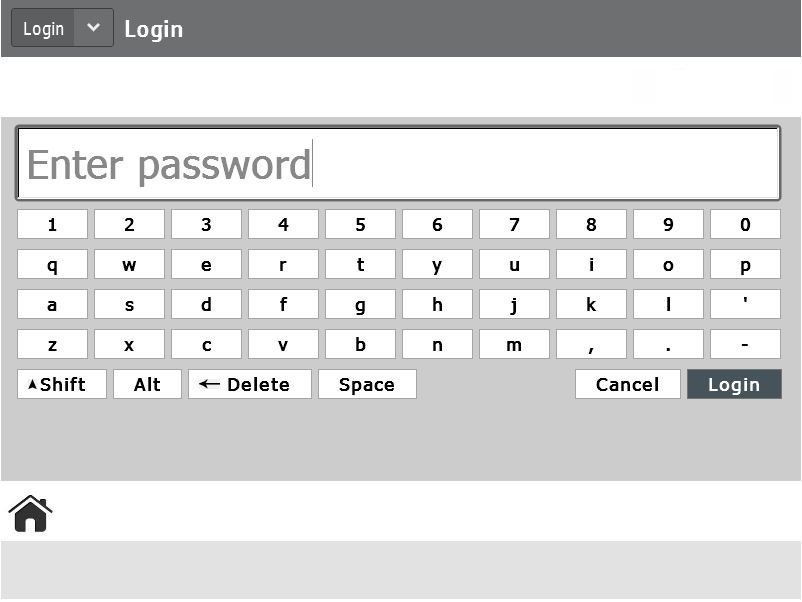

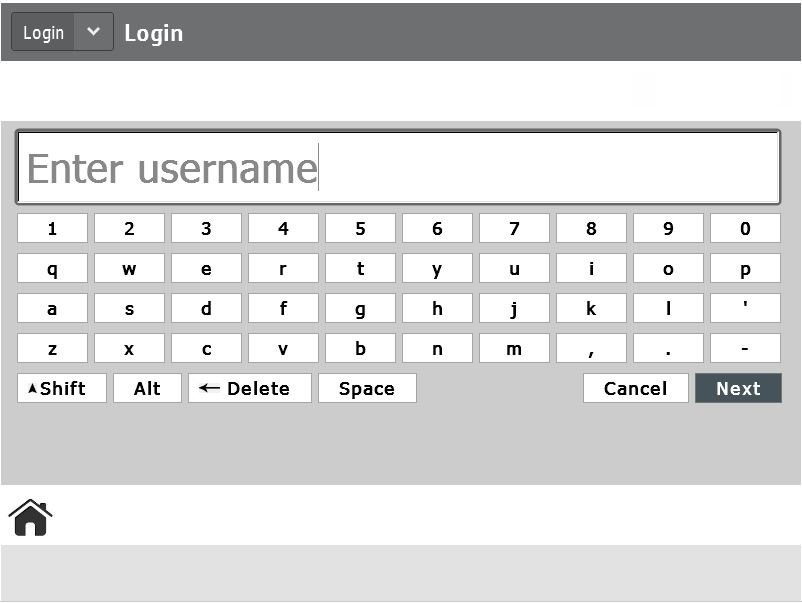

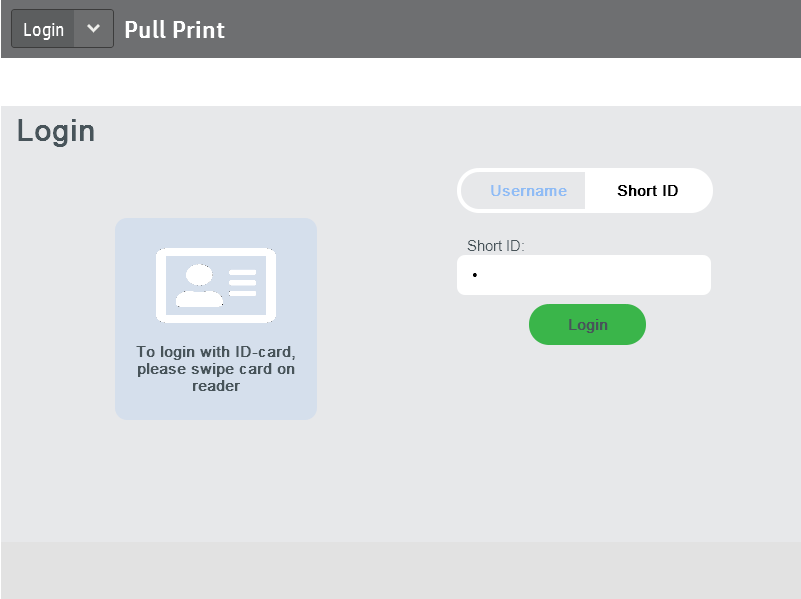

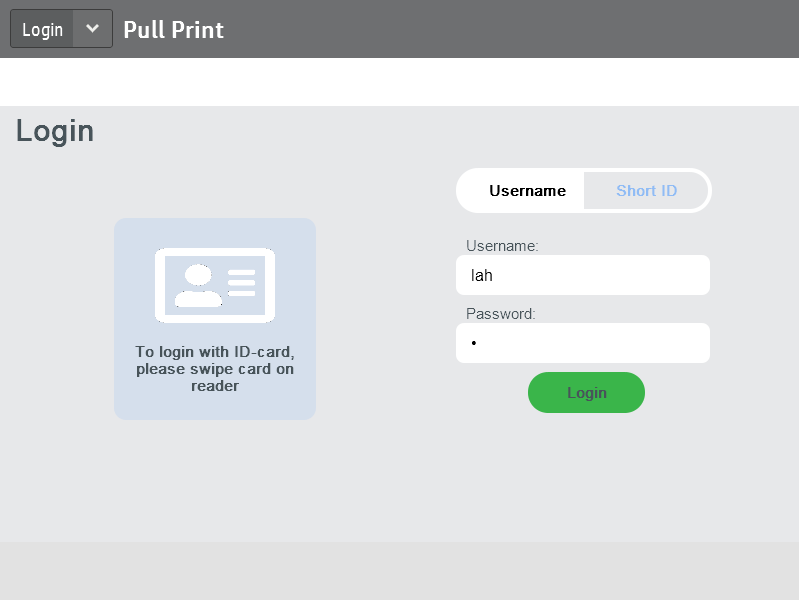

Authenticate using Username/Password or Short ID

Unknown Attachment

Unknown Attachment

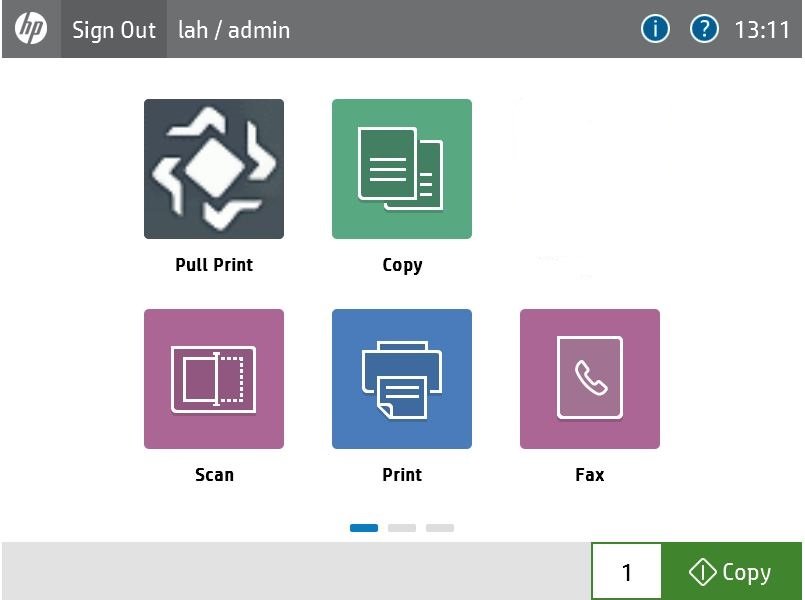

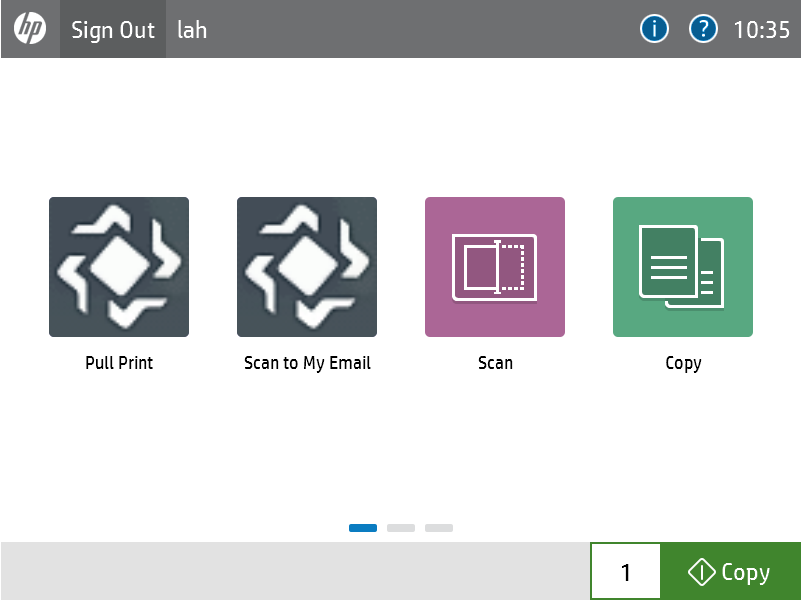

You can now choose the function you want to use.

Unknown Attachment

Releasing printjobs:

Log in on the mfp and choose “Pull Print” for releasing your printjobs.

Unknown Attachment

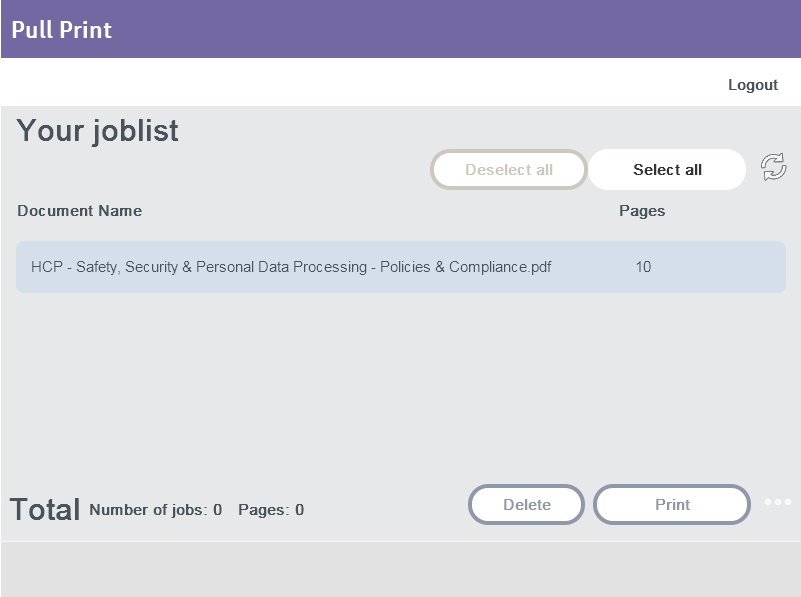

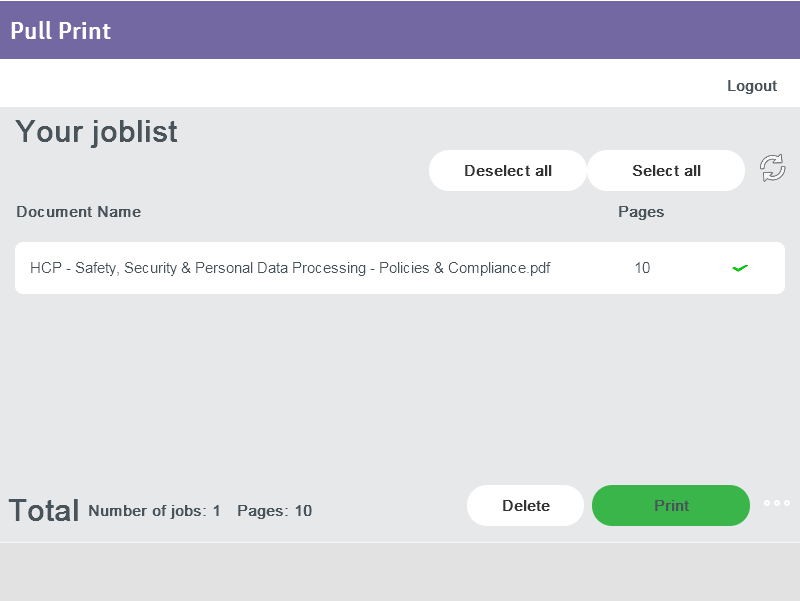

Select job(s) you want to release by touching the each job or using Select/Deselect all buttons

Unknown Attachment

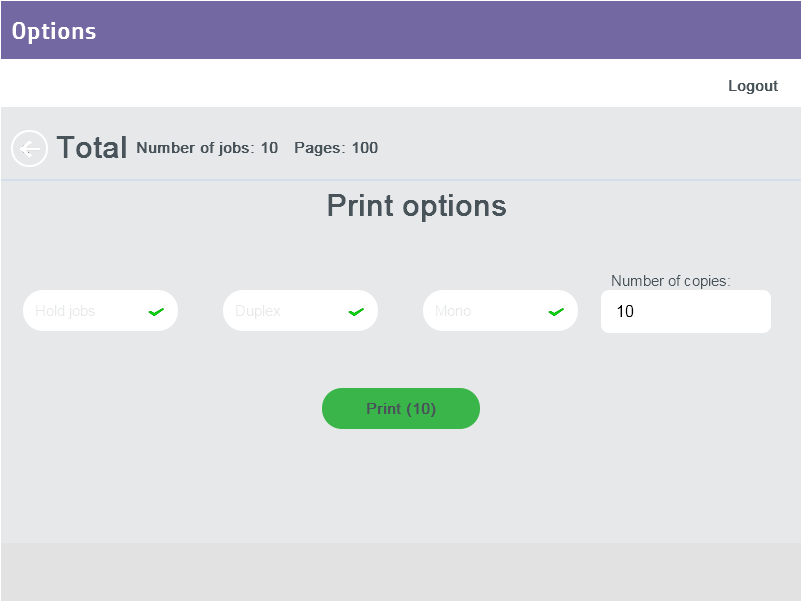

You can change options for your printjob by hitting the ellipsis in the bottom right corner.

Unknown Attachment

Using the native Scan-function:

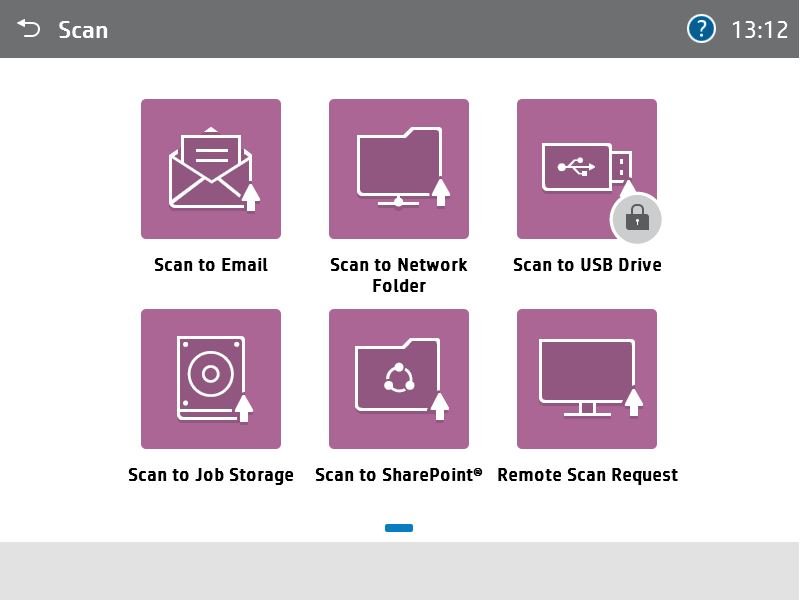

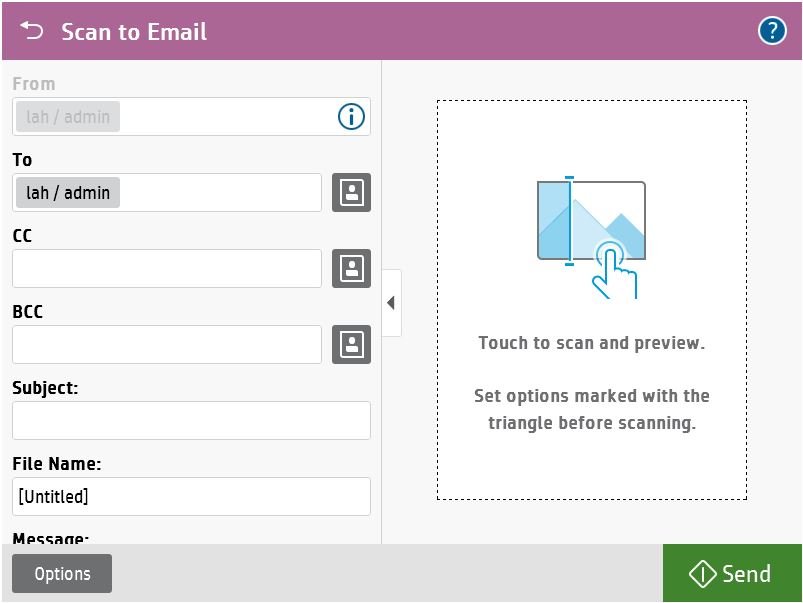

Log in on the mfp and choose “Scan” in the mainscreen and then “Scan to Email”.

Unknown Attachment

Choose “Options” for changing the options for your scan or just make your scan.

Unknown Attachment

Using the Scan to My Email function:

Log in on the mfp and choose “Scan” in the mainscreen and then “Scan to My Email”.

Unknown Attachment

Unknown Attachment

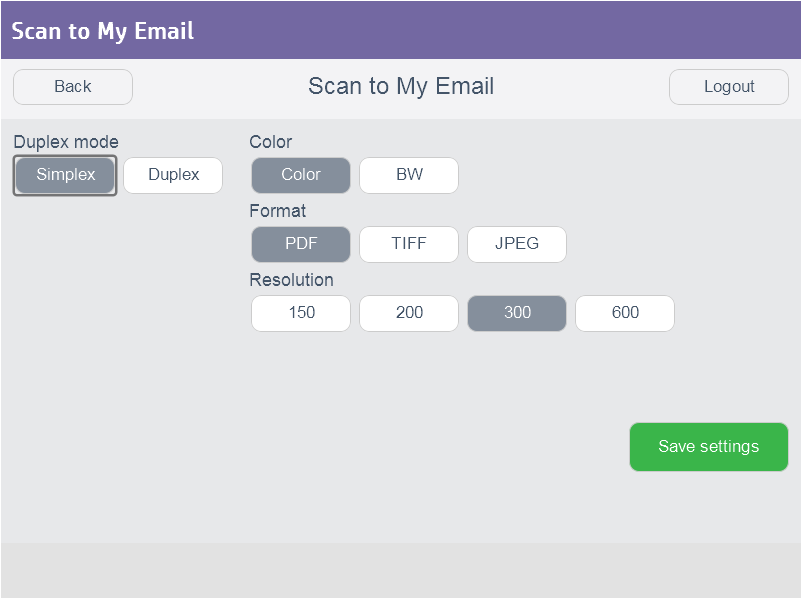

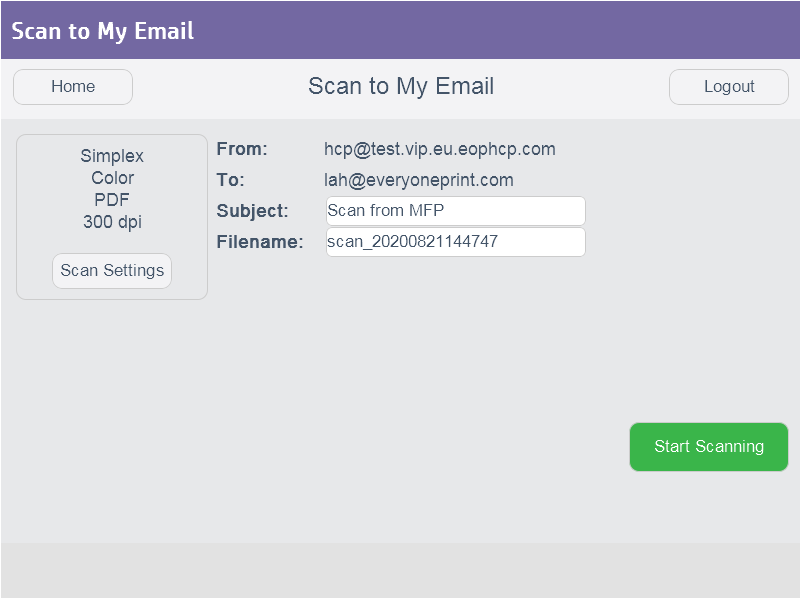

You can change Scan Settings

Unknown Attachment

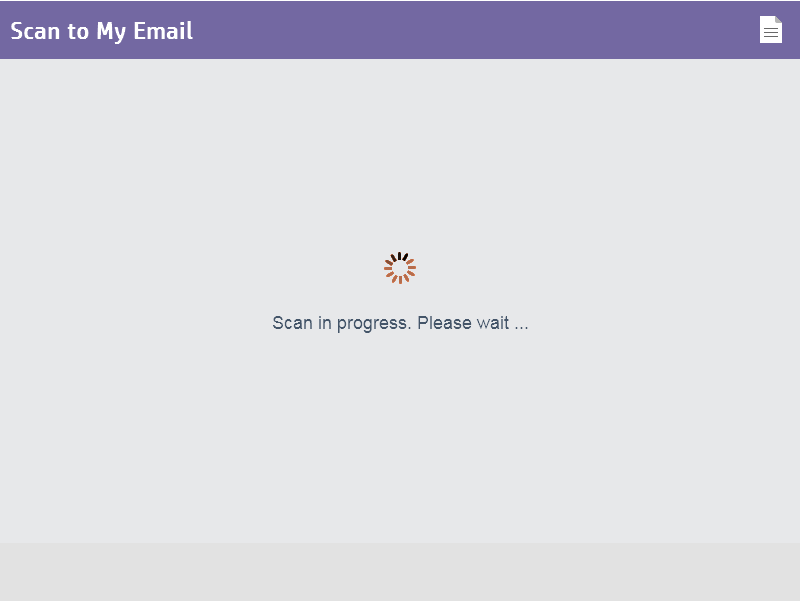

Start Scanning

Unknown Attachment

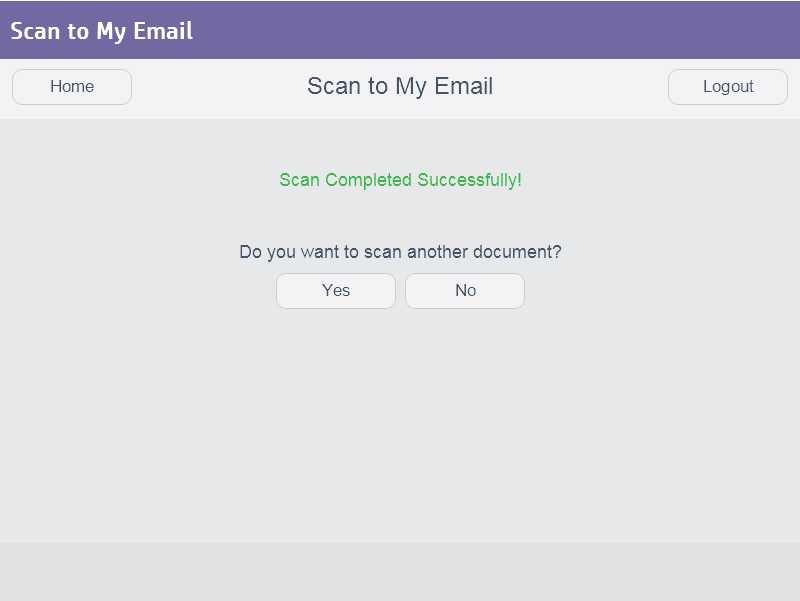

You can scan another document at the end

Unknown Attachment
